Remote I/O System for IoT nano Series

Remote I/O devices for digitizing interspersed local devices.
CONPROSYS nano is easy to use and features excellent cost performance, accelerating the digital transformation of industrial systems.

I/O Modules

These modules provide various expanded I/O interfaces to the coupler units.

Digital I/O Modules

Model Input Output Power Consumption Connector
8ch
Opto-coupler isolated input
Supports current sink (negative logic) or source (positive logic) output
0.3W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)
8ch
Opto-coupler isolated input
Supports current sink output (negative logic)
0.9W
16ch
Opto-coupler isolated input
(Supports current sink(negative logic) or source (positive logic) output) with simple counter function
1.3W MIL connector(20pin)
8ch
Opto-coupler isolated open collector output Current sink type (negative logic)
0.4W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)
8ch
Opto-coupler isolated open collector output Current sink type (negative logic)
1.2W
8ch
Opto-coupler isolated output
(Current source output)(positive logic)
0.3W
8ch
Opto-coupler isolated output
(Current source output)(positive logic)
1.2W
Bi-Directional: 8ch (shared inputs and outputs)
Input: Opto-coupler isolated input(supports current sink output)(negative logic)
Output: Opto-coupler isolated open-collector outputs (current sink type) (negative logic)
0.3W

Not sure which product to choose? See this simple explanation that covers everything from terminology to the characteristics of interface circuits!

Analog Input Modules

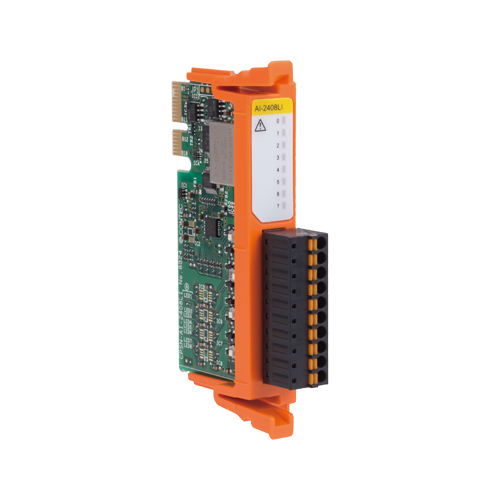

Model Input Format*1 No. of Input Channels Voltage Input*1 Input Current*1*2 Power Consumption Connector
Single-end input
or differential input
8ch
(single-end input)
4ch
(differential input)
±10V,±5V,
±2.5V,
0 to 10V,
12bit,
Bus isolated
±±20mA 12bit,
(Bus isolated)
1.4W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)
±10V,±5V,
±2.5V,
0 to 10V,
0 to 5V
24bit,
Bus isolated
±20mA,
0 to 20mA,
24bit,
bus isolation
1W
  • *1
    All input channels are assigned for the same input format and input range.
  • *2
    Current input is only for differential input.

Analog Output Modules

Model Output Format Ch / Isolation Resolution Output Range Voltage Current Output Range Power Consumption Connector

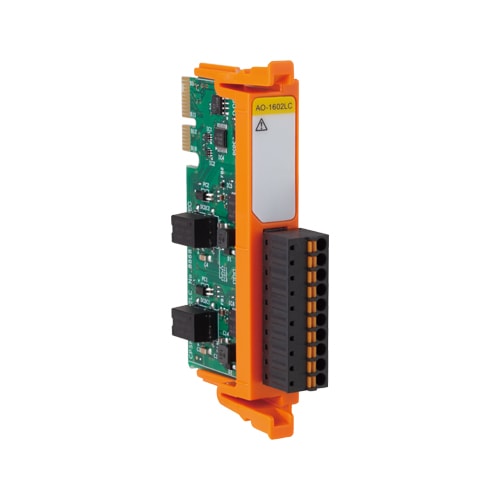

Voltage/current output 2ch / Inter-channel isolation 16bit ±10V, ±5V, 0 to 10V, 0 to 5V 0 to 20mA 2.1W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)

Not sure which product to choose? See this simple illustrated explanation of basic knowledge and terminology related to analog input and output, A/D conversion, and D/A conversion!

Counter Modules

Model Input Output Power Consumption Connector
Phase-A/UP 1ch
Phase-B/DOWN 1ch
Phase-Z/CLR 1ch
General-purpose input signals 1ch
Opto-coupler isolated input
Match signal output 1ch
Opto-coupler isolated open collector output
0.4W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)

Relay Modules

Model Input Output Power Consumption Connector
4ch relay contacts (Form A) output 1.2W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)

Sensor Module

Model Input Format No. of CH / Isolation Supported Sensors Power Consumption Connector
Differential input 4ch / bus isolation Thermocouple
J, K, E, N, R, S, T
1.1W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)

Serial Communication Modules

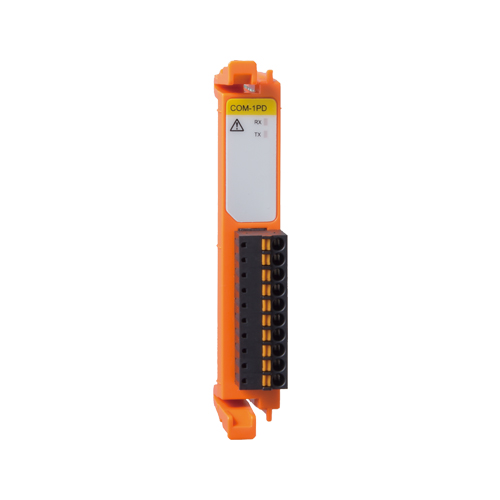

Model Transmission Scheme No. of CH / Isolation Power Consumption Connector
Asynchronous serial
transmission
(Full duplex / Half duplex)
1ch / Bus isolated 1.7W Screw terminal block
(2 pieces 3.81mm/0.15” pitch 10-pin)

Not sure which product to choose? See this simple explanation that covers everything from terminology to programming methods!

Options

Power Supply Unit with Integrated DIN Rail

Model Rated Voltage Input Range Rated Output Voltage Rated Output Current Supplied Power
100 to 240V(50 to 60Hz) 24VDC 1.3A(Max) 30W
100 to 240V(50 to 60Hz) 24VDC 3.8A(Max) 90W
  • *
    A DC cable and a 3-pin I/O connector are included with the power supply unit.
  • *
    A separate AC power cable must be prepared by the user.

Selecting a Power Supply Unit

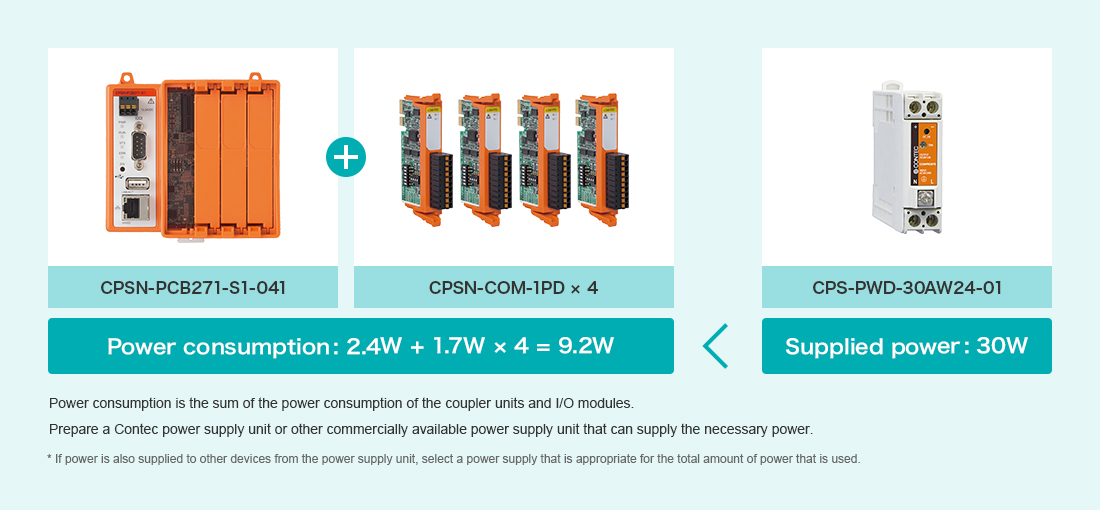

CPSN-PCB271-S1-041 + CPSN-COM-1PD x 4, Power consumption: 2.4W + 1.7W x 4 = 9.2W < CPS-PWD-30AW24-01, Supplied power: 30W, Power consumption is the sum of the power consumption of the coupler units and I/O modules. Prepare a Contec power supply unit or other commercially available power supply unit that can supply the necessary power. (* If power is also supplied to other devices from the power supply unit, select a power supply that is appropriate for the total amount of power that is used.)
